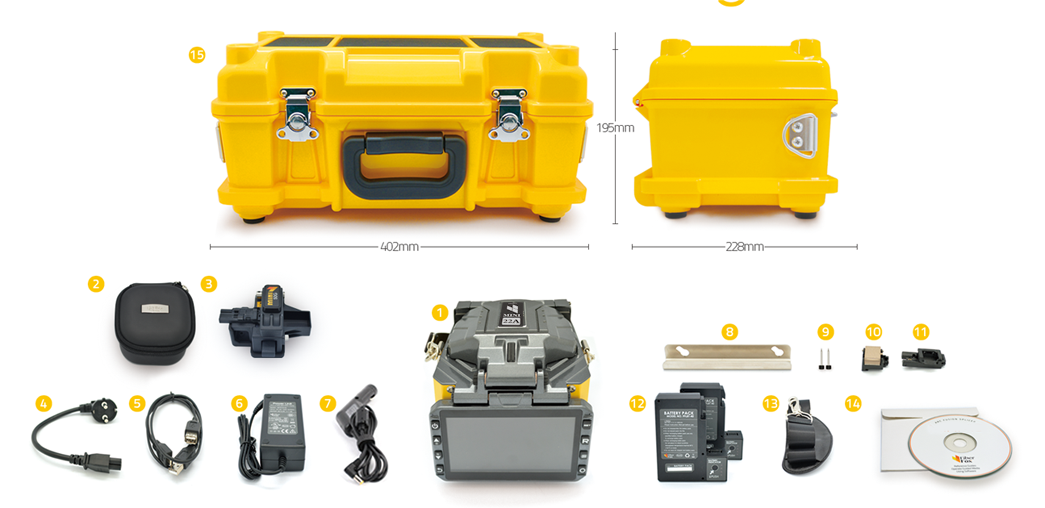

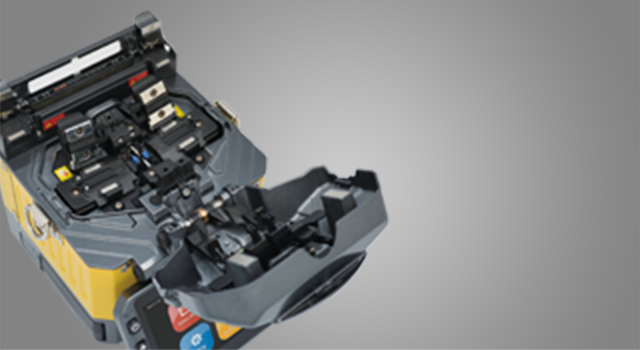

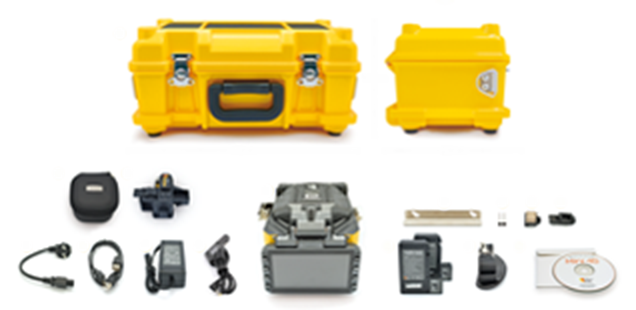

Specifications

Splicing Method

Active Alignment (DAA: Digitalized Active Alignment)

Splicing Loss

SM(0.03dB) / MM(0.02dB) / DS(0.05dB) / NZDS(0.05dB)

Return Loss

>>60dB

Splicing Time

Quick: 7 Sec. / SM Mode: 8 Sec.

Electrodve Lifespan

>>3,500 arcs

Applicable Fiber (Cable)

SM(ITU-T G652 & G.657) / MM(ITU-T G.651) / DS(ITU-T G.653) / NZDS(ITU-T G.655)

Cleaved Length

>250Um Coating : 5~16mm / >250Um Coating : 8~16mm

Coating Dlameter

100-3,000um

Cladding Dlarmeter

80-150um

Heating Programs

36 modes (Pre-set: 4 / User set-up: 32)

Heating Time

Ave. 18 Sec.

Applicable Sleeve

20 ~ 60mm

Connectivity (link to PC)

USB (5Pin Mini-B)

Splice Programs

139 modes (Pre-set: 11 / User set-up: 128)

Data Storage

Splice record : 5,000 / Image : 2,000

Battery

300 cycles (Splicing & Heating)

Power Supply

AC 100-240V input or DC 9~15V

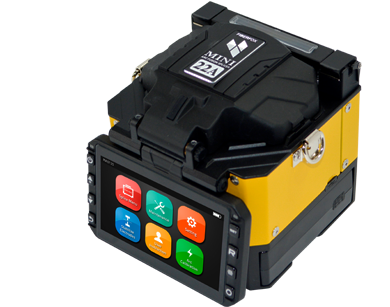

Monitor

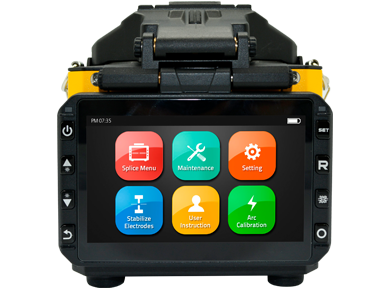

Color 4.3" LCD monitor, with Touch Screen (Tempered Glass)

Fiber detecting

Dual CCD camera with LED emitting system

Magnification

200 for X and Y; 320 for X or Y

Fiber Display

X/Y or XY, single X.Y

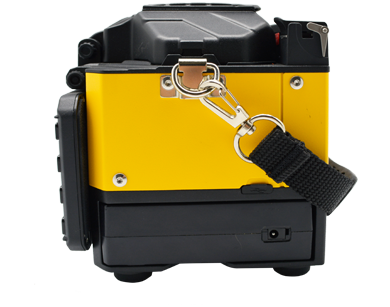

Weight

1.4kg (with battery : 1.8kg)

Size

122 x 124 x 138mm (L x W x H)

Wind Protection

The max wind speed 15m/s

Operating Environment

Elevation 0-5,000 meters, -15~60˚C, 0~95% relative humidity

Storage Condition

Temperature -40 to 80˚C, 0~95% relative humidity, battery -20~30˚C

Pull Test

1.96~2.25N (standard)
