Fox Splice On Connector

SOC

SOC
SOC pic 1

01

Compliant with

IEX51754-4, KS C6974(F04), JIS C5973(F04)

02

Compliant with

Compliant with Telcordia GR-326-core

03

Able to directly splice

drop cable & indoor cable

04

Higher quality,

better insertion loss and return loss

05

It is easy to assemblewith one step system

06

Assembly Procedure

  • step1 1.

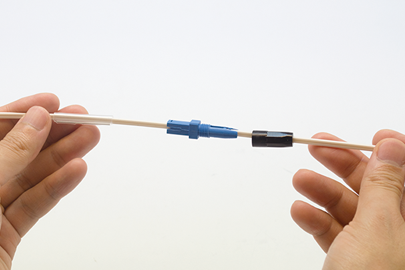

    Pass the cable through the a sleeve, a boot, and a boot cap.

  • step2 2.

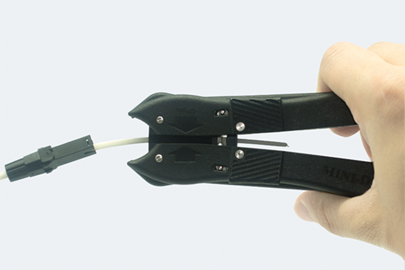

    Strip the indoor cable with a stripper.

  • step3 3.

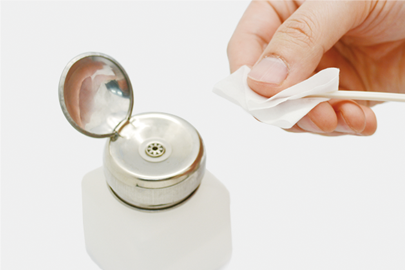

    Clean the stripped cable with alcohol soaked tissue.

  • step4 4.

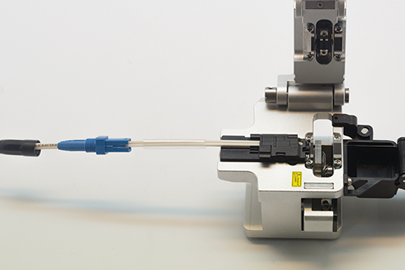

    Cleave it with a cleaver and put the stripped cable on the right holder.

  • step5 5.

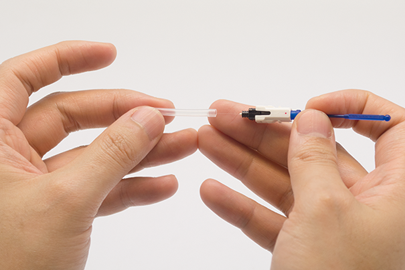

    Take the ferrule fiber cap off.

  • step6 6.

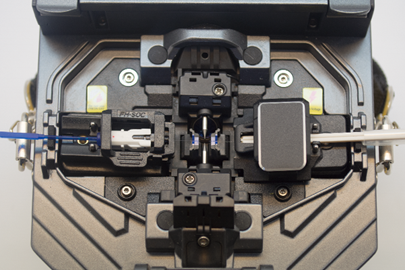

    Put the ferrule part on the left holder.

  • step7 7.

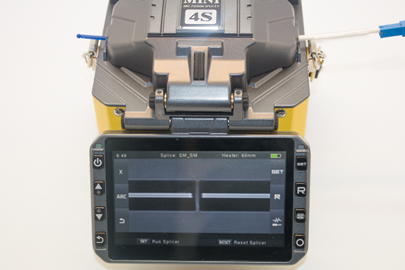

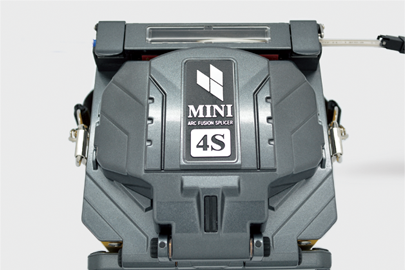

    Proceed with splicing process.

  • step8 8.

    Slide the sleeve at the end of ferrule part.

  • step9 9.

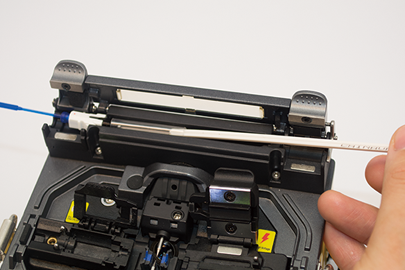

    Put the cable in the oven.

  • step10 10.

    Set the Heating Menu.

  • step11 11.

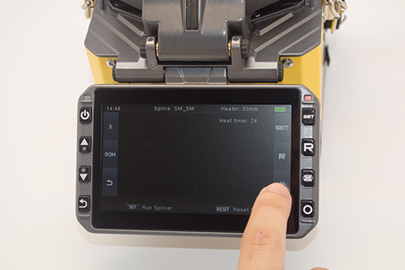

    Touch the heating icon for heating process.

  • step12 12.

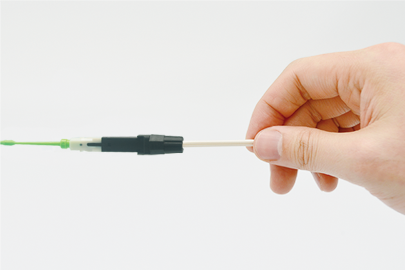

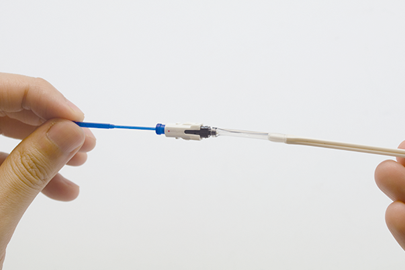

    Cool it down after the heating is completed.

  • step1 13.

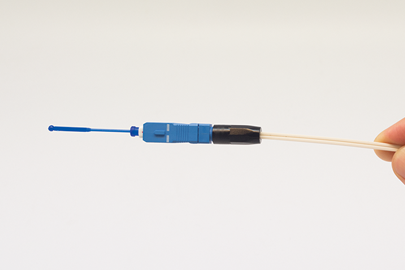

    Assemble the boot, the boot cap and the housing.

  • step2 14.

    Complete.

Specifications

Connector type

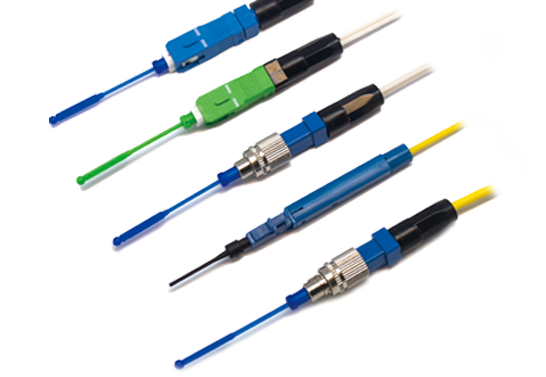

SC, LC, FC, ST
Cable type
3mm Drop cable, 3x2mm Flat cable , 2.0 mm , 0.9mm Cable / LC(0.9 mm, 2.0 mm Only)
Insert Loss
≤ 0.2 dB
Return Loss
≥ 65 dB(Typical ≥ 60 dB)
Adaptor repeat test
100 times of reconnection: ≤ 0.2dB
Operating Temperature
-40 to 75
