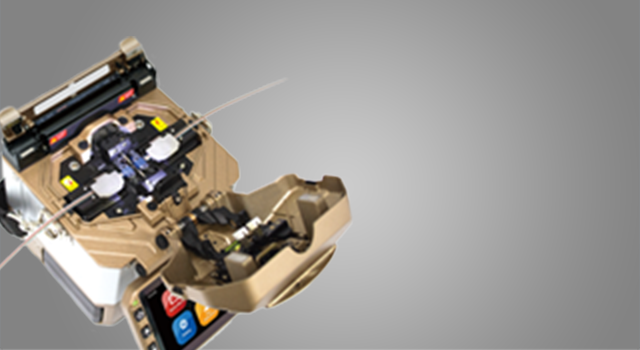

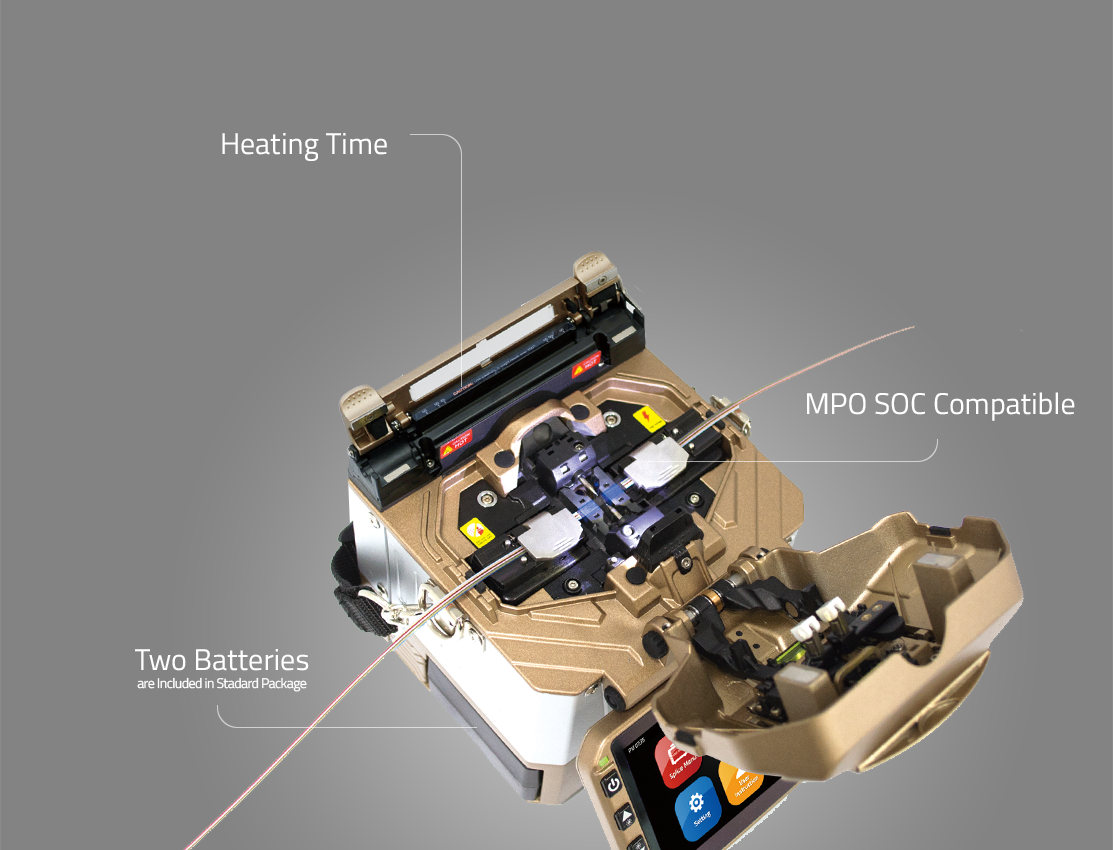

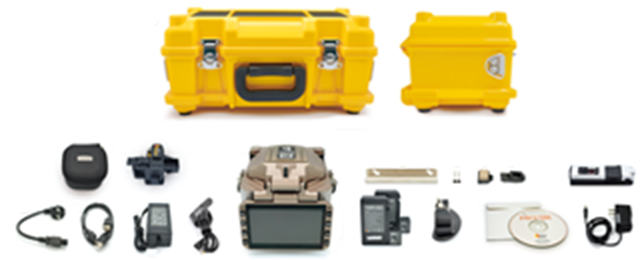

Specifications

Applicable Fibers

SMF(G.652/657), MMF(G.651), DSF(G.653), NZDSF(G.655)

Fiber Count

Single to 12 Ribbon Fibre

Cladding dia./Sheath dia.

Single : 125 / 160 to 3mm by Fiber Holder System
Ribbon : 125 / Ribbon Fibre Thickness 0.25 to 0.4mm

Cleave Length

13mm

Splice Mode
/Heating Mode

100 Splice Modes / 32 Heating Modes

Typical Splice Loss

0.03dB(SM), 0.02dB(MM), 0.08dB(DS) and 0.08dB(NZDS)
Measured by cut - back method relevant ITU-T and IEC standards

Splice Time
/Tube Heating Time

Typical 15 Sec/ Typical 20 Sec

Splice Result

Last 2000 Splices

Viewing Methods
/Magnification

2 Axis CMOS Camera with 4.3” Colour LCD / 33X and 60X Magnification

Applicable Protection
Sleeve

60MM, 40MM









No. of splice
/Heating Per Battery

Typical 120 cycles with LBT-50

Electrode life

1500 splices

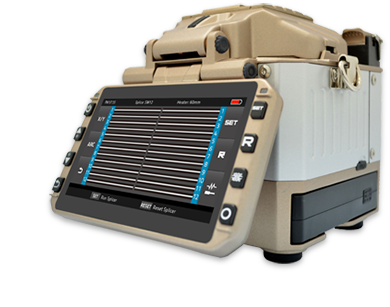

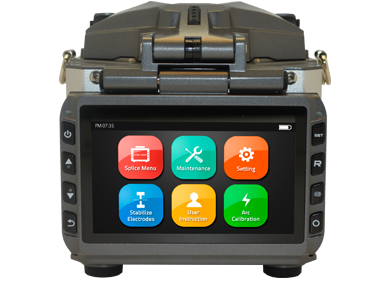

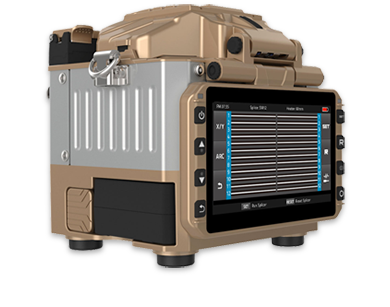

LCD Screen

4.3” Colour Super Clear Touch Screen with Temper Proof Glass

Optical System

Mirror

Size/Weight

122 X 124 X 138 / 1.26kg without Battery

Operating Environment

Elevation 0 to 5000 meters, -10℃ to 60℃ , 0 to 95% Humidity

Storage Condition

Temperature -40 to 80℃ , 0 ~95% Relative humidity, Battery -20~30℃

Pull Test

1.96 to 2.25N (Standard); 4.4N(Optional)

Terminals

USB 2.0 (Mini-B Type) Connector for PC Communication

Other Features

Remote PC Software Upgrade / Data Management / Maintainance
