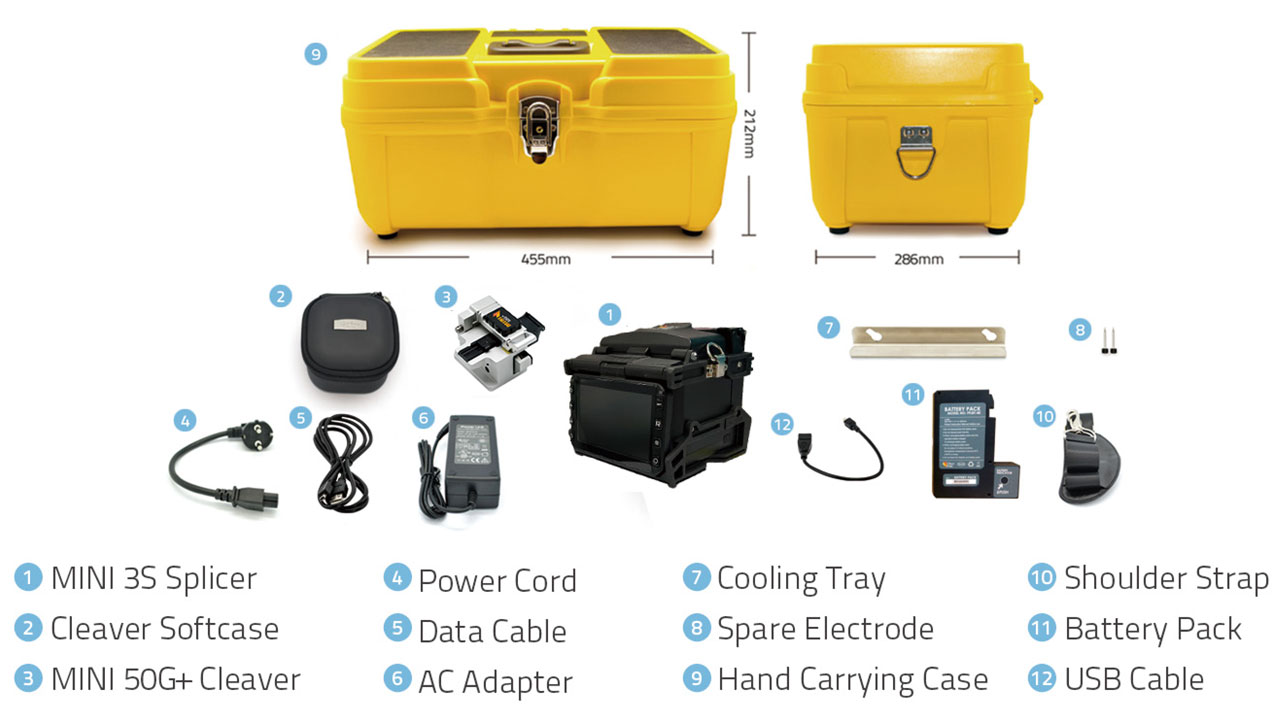

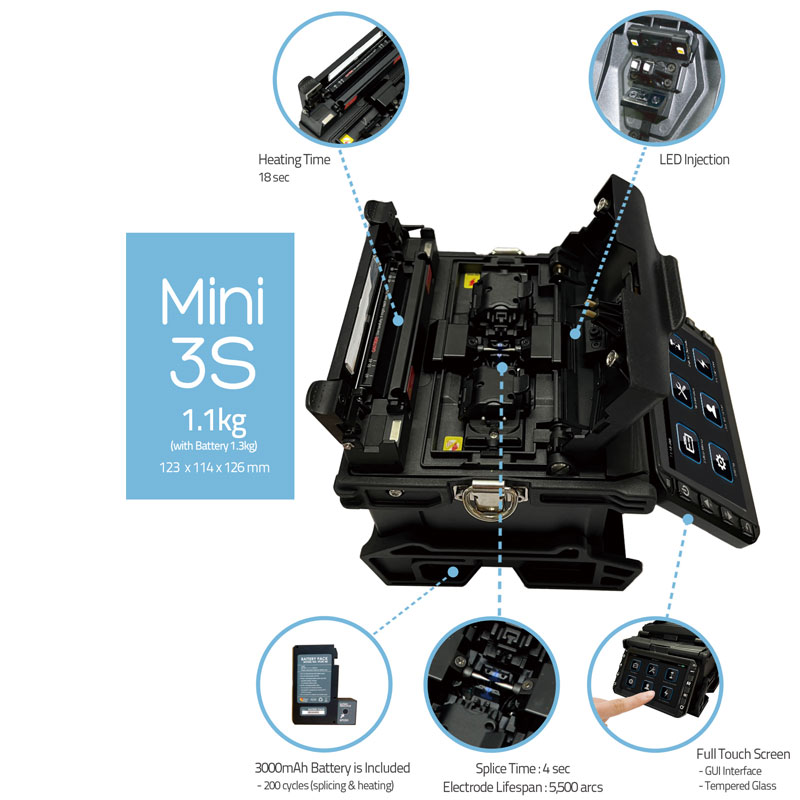

Specifications

Splicing Method

Active Alignment DAA(Digitalized Active Alignment)

Average Loss

SM(0.03dB) / MM(0.02dB) / DS(0.05dB) / NZDS(0.05dB)

Return Loss

>>60dB

Splice Time

Quick: 4 Sec. / SM Mode: 6 Sec.

Electrodve Lifespan

>5,500 arcs

Applicable Fiber

SM(ITU-T G.652 & G.657) MM(ITU-T G.651), DS(ITU-T G.653), NZDS(ITU-T G.655)
0.25mm, 0.9mm, 2.0mm, 2.4mm, 3.0mm, FLAT(indoor cable)

Cleaved Length

Coating Diameter < 250Um = 5-16mm, Coating Diameter > 250Um = 8-16mm minimum

Coating Diameter

100-3,000um

Cladding Diameter

80-150um

Heating Programs

Factory installed mode : 5, User installable mode : 95 (Total : 100 mode)

Heating Time

Ave. 18 Sec

Protection Sleeve

40mm, 60mm, SOC-3.0, SOC-0.9

Data Output

Micro HDMI-USB master device

Splice Programs

Factory installed mode : 11, User installable mode : 128 (Total : 139mode)

Splice Memory

Splice record : 10,000 / Image : 2,000

Battery

Li-ion 11.1V 3000mAh / 200 cycles (Splicing & Heating) / Storage Temperatuer : -20~40 C

Power Supply

AC 100-240V input or 12.6V 1.8A / 50-60Hsz / 10 ÷ 14 VDC

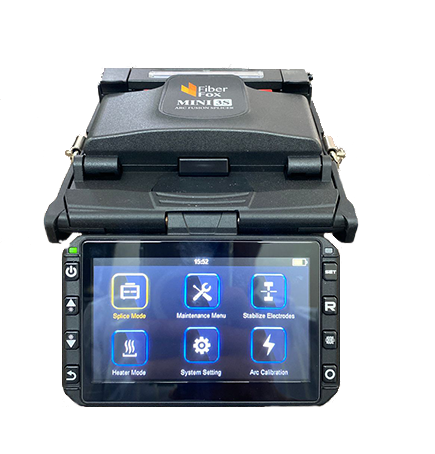

Monitor

Color 4.3’’ LCD monitor, with Touch Screen (Tempered Glass)

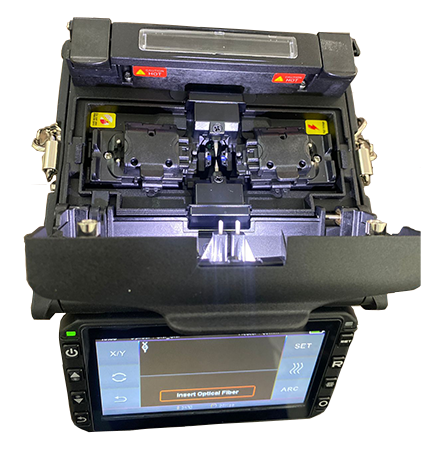

Cameras

2 CCD camera system

Fiber Display

Color 4.3" LCD monitor, with Touch Screen (Tempered Glass), Anti-Reflective Screen, X/Y (Single image): 400x / X&Y (Dual image) : 200x

Weight

1.1Kg (with battery: 1.3kg)

Size

123 X 114 X 126mm (L x W x H)

Wind Protection

Wind speed : 15m/s (max)

Operating Environment

Altitude : 0-5,000m / Temperature: -10~50℃ / Humidity: 0~95%RH

Storage Condition

Temperature : 40℃ to 80℃ / Humidity: 0~95%RH

Pull Test

1.96~2.25N(standard)

Attenuation splicing

Available range : 0.1 ~ 20dB
