Mini 6SI

Mini6SI Info

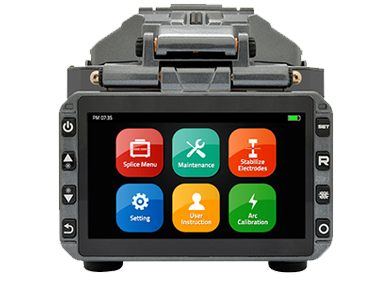

  • Mini 6SI pic 1

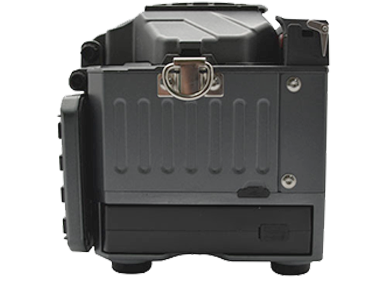

  • Mini 6SI pic 2

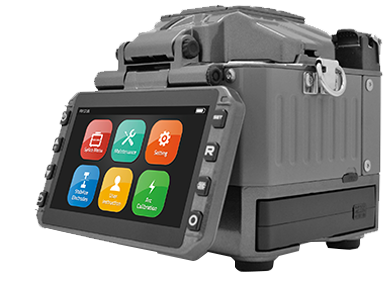

  • Mini 6SI pic 3

01

Performance

Perfect performance under any environmantal conditions
  • ( % )
  • 30
  • 25
  • 20
  • 15
  • 10
  • 5
  • 0.005
  • 0.010
  • 0.015
  • 0.020
  • 0.025
  • 0.030 (dB)

0.005 ~ 0.019 dB : 80 ( % )

03

Characteristic

  • Characteristic 1

    Heating Time

    18sec with 60mm sleeve

  • Characteristic 2

    The Fast Splicing Time

    7sec with SM fiber

  • Characteristic 3

    Universial Holder

    250㎛ / 900㎛ / 2~3Φ / Indoor
  • Characteristic 4

    Full Touch Screen

  • Characteristic 5

    600 cycles (Splicing & Heating)

    with Two Batteries

  • Characteristic 6

    SOC Compatible

04

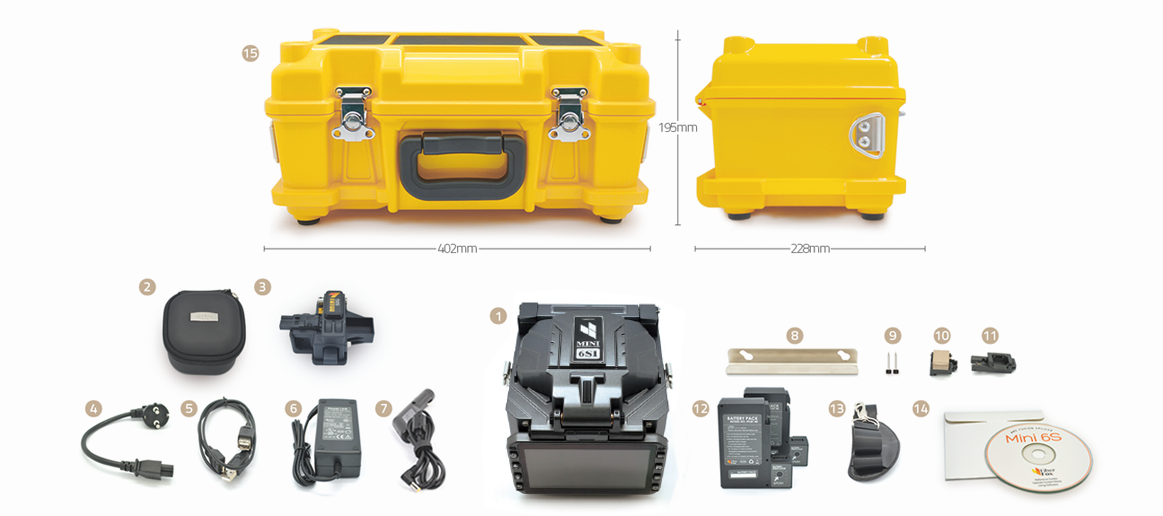

StandardPackages

Standard Package
  • 01MINI 6SI Splicer
  • 04Power Cord
  • 07Car Cigar Cable
  • 10SOC Heater Block
  • 13Shoulder Strap
  • 02Cleaver Softcase
  • 05USB Cable
  • 08Cooling Tray
  • 11SOC Holder
  • 14User Manual CD
  • 03MINI 50G Cleaver
  • 06AC Adapter
  • 09Spare Electrode
  • 122 Battery Packs
  • 15Hand Carrying Case

Specifications

Splicing Method
Core Alignment AOCAT(Automatic Optical Core Analysis & Tracking System)
Splicing Loss
SM(0.02dB) / MM(0.01dB) / DS(0.04dB) / NZDS(0.04dB)
Return Loss
>>60DB
Splicing Time
Quick: 7 Sec. / SM Auto: 10 Sec.
Electrodve Lifespan
>>3,500 arcs
Applicable Fiber (Cable)
SM(ITU-T G652 & G.657) / MM(ITU-T G.651) / DS(ITU-T G.653) / NZDS(ITU-T G.655)
Cleaved Length
>250Um Coating : 10~16mm / >250Um Coating : 16mm
Coating Dlameter
100-3,000um
Cladding Dlarmeter
80-150um
Heating Programs
42 modes (Pre-set: 10 / User set-up: 32)
Heating Time
Ave. 18s
Applicable Sleeve
20 ~ 60mm
Connectivity (link to PC)
USB (5Pin Mini-B)
Splice Programs
166 modes (Pre-set: 38 / User set-up: 128)
Data Storage
Splice record : 5,000 / Image : 2,000
Battery
300 cycles (Splicing & Heating)
Power Supply
AC 100-240V input or DC 9~15V
Monitor
Color 4.3" LCD monitor, with Touch Screen (Tempered Glass)
Fiber detecting
Dual CCD camera with LED emitting system
Magnification
200 for X and Y; 320 for X or Y
Fiber Display
X/Y or XY, single X.Y
Weight
1.5kg (with battery : 1.9kg)
Size
122 x 124 x 138mm (L x W x H)
Wind Protection
The max wind speed 15m/s
Operating Environment
Elevation 0-5,000 meters, -15~60˚C, 0~95% relative humidity
Storage Condition
Temperature -40 to 80˚C, 0~95% relative humidity, battery -20~30˚C
Pull Test
1.96~2.25N (standard)
